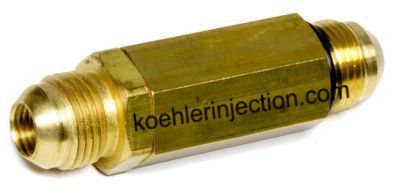

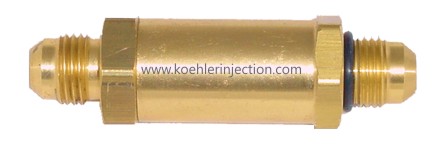

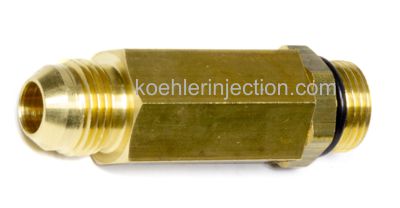

Check Valves
AKA Poppets, By Passes, High Speeds
(spring shims included)
Choose quantity in "view cart" or at "checkout"
60003.... 1- 5 PSI
60010.... 5-12
60012.... 9-25
60015.... 15-50
60025.... 24-65
60038.... 44-80
60040.... 10-120
60050.... 90-250
$49.95 ea
-6 male both ends
If you would like a check valve preset to a
specific pressure use this "add to cart".
In the message box during checkout list
your pressure choice.
$59.95 ea
Approx
PSI
Springs & Shims
Springs
$1.85 ea
Part#
3a..............1.5- 5
10a............ 5-12
12a.............9-25
Choose quantity in "view cart"
or at "checkout"
15a............15-50
25a............24-65
38a............44-80
Shims
$1.10 ea
40a............10-120
.020 and .040 thick available
250a..........90-250

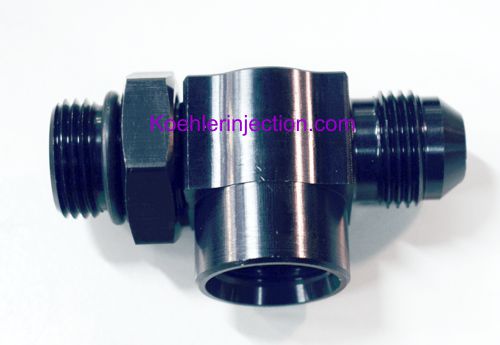

Adapters for Check Valves

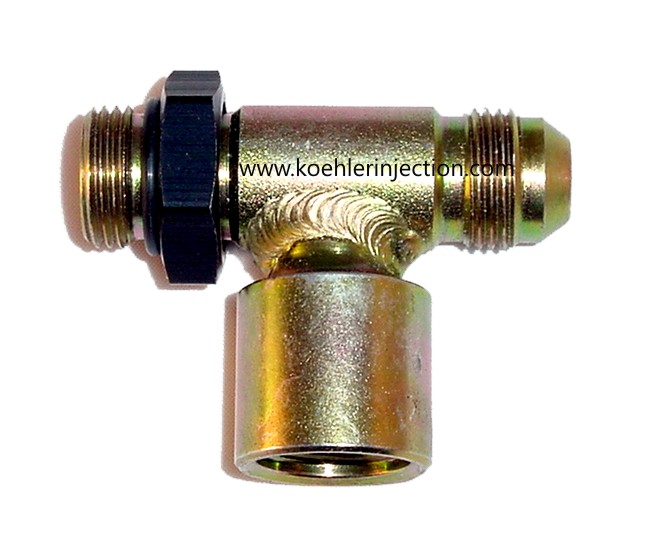

# 7001B .. $24.95
-8 bulkhead x -8 male

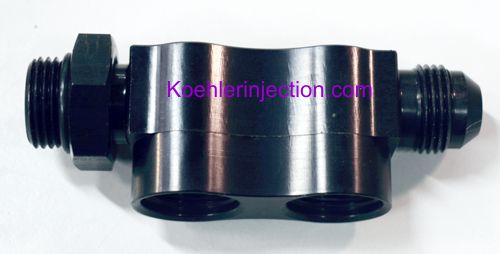

# 7001CC .. $29.95
-8 bulkhead x -8 male
2 check valve ports
# 7002 .. $24.95
-6 bulkhead x -6 male
# 7001DD .. $29.95
-6 bulkhead x -8 male
2 check valve ports

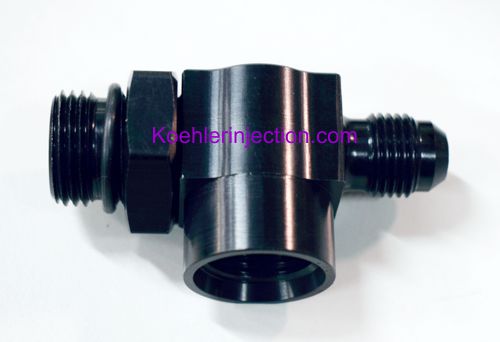

# 7002A .. $24.95
-8 bulkhead x -6 male
Note: The bypass side of these are -8.
You will need the 7003 (shown below) in
order to mate up a -6 bypass and use a
jet.
To save space (and a jet is not
needed) an option is to use the
89386 adapter shown further down.
Jet Holders
# 7003 .. $10.95
-8 male port x -6 female port
Accepts threaded jet. See Example assembly >>>

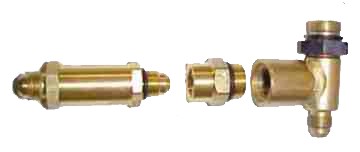

Assembly Examples
# 7003A .. $11.95
-6 male flare x -6 female port
Accepts threaded Jet
When used as an in-line hi speed, a 6000 check
valve is mated to this. See example assembly >

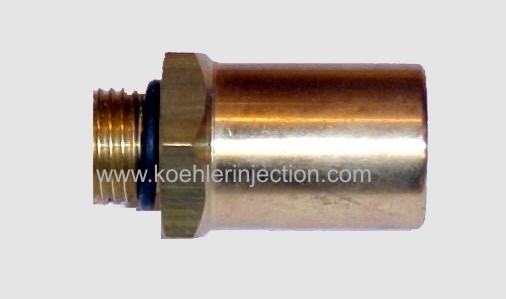

# 7003C .. $11.95
-6 port x -6 female port
Accepts threaded Enderle Jet
# 89386 .. $4.95
-8 male port x -6 female reducer
# 8156 .. $4.99
For use with any of the above 3 jet holders.
If you need an inline jet without the check valve
use this fitting to complete the assembly.
# 995008..$11.95
Reducer.. -8 female x -6 male
Use with 7001D, 7001CC, 7001DD,
7002B when connecting line needs
to be a -6.
# 7001A .. $24.95
-6 bulkhead x -8 male
All Text and images on this website are copyrighted by David Koehler 2000 and beyond
All sales are final. Items and services provided by Koehler Injection are intended for off road use only.
No responsibility whatsoever will be accepted by Koehler Injection for any damage, injury or loss resulting from their use.
Urbana IL, USA 217 469 7663 M-F 9 - 5 CST
Postal Money Order
[Home][Fuel Injection][Engine Balancing][Industrial Balancing][Shop Services][Nitrous Oxide][Fuel Injection Service][Ornaments][4 barrel fuel injection]
[Enderle Nozzles-Jets][Fuel Injection Tools][Enderle Fuel Pumps][Bypass Check Valves][Belt Drives][Fuel Returns][Fuel Filter][Throttle Control]
[Fuel Pump Repair][Weather Book][Nitrous Charger][Nitrous Flow Service][Alcohol Fogger][Garage Sale][Articles][Fuel Shutoffs]
Air Operated Hi/Lo, Lean Out or Enrichment Kit
Features:
Low voltage actuation. It can be
triggered on OR off with a switch,
relay, MSD or other controller.
0.3 amp draw
Can be operated with a 9v battery.
Actuator is constant duty rated.
(can stay ON all day)
Hi pressure (up to 1250 psi)
Orifice size: .156
Air Pressure required: 100-150 psi
Size Comparison - click
O-ring Kit
Alky/nitro O-ring kit for the -6 bypass.
Enough o-rings to freshen 4 bypasses
$4.95 ea
Can be used for idle bypass, secondary bypass, intermediate, one way check valve or
high speed bypass applications.
For -6 bypass check valves.
Fuel Management
3a .......... 1.5-5
Urbana IL, USA
217 469 7663
M-F 9 - 5 CST
Many Photos may be enlarged
by clicking on them.
Postal Money Order
Nitrous Oxide
Fuel Injection
9006 ... 6 male .......................... 69.95
9008 ... 8 male .......................... 79.95
1 way check valve holds fuel in suspension in the lines making
re-starts a simple task. Does not affect flow.
Re-start Valve
