Fuel Return

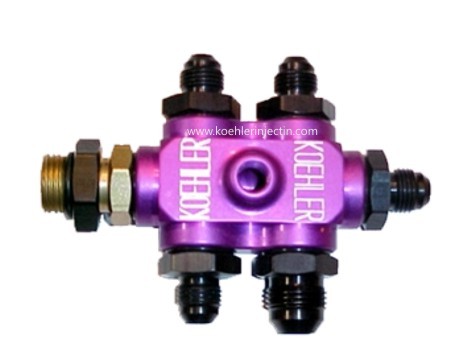

This beautiful, light weight, CNC machined item features
6 -8 AN ports plus a 1/8" npt port.  It may be used on the
return side to simplify and cut down on the amount of
hoses going back to the tank. Fewer long hoses means
less weight.  It may also be used as a pressure
distribution block.
Make your life easier with a return line distribution block.
All AN fittings are included. Also included are 2 AN plugs
in case you don't need to use all the outlets.
Can be used as a stand-alone piece or the bulkhead model
may be attached directly to your 3 way shutoff or barrel
valve.
Popular ready to go models are listed below.
You may choose what size of fittings you prefer.
To do this:
Choose the 1008X custom model and when you check
out there is a message box. In there put the sizes and
quantity you prefer. Example: 2 -6, 2-8, 1-10, 1 -8
bulkhead.
Stand-alone version
Bulkhead version
All models....$119.95
Model
Qty & Sizes
1008d......5 -6,.. 1 -8....................
1008E.....5 -6,..1-10.....................
1008F.....5 -8,....1-10...................
1008G...-6 bulkhead, 4 -6,..1-8.....
Bulkhead version
mounted on shut off
1008H...-6 bulkhead, 4 -6,...1 -10..
1008J...-8 bulkhead, 4 -6,...1 -8....
1008K...-8 bulkhead, 4 -8,...1 -10..
1008X..........custom....................
Fuel injection bypass fuel return log.
All Text and images on this website are copyrighted by David Koehler 2000 and beyond
All sales are final. Items and services provided by Koehler Injection are intended for off road use only.
No responsibility whatsoever will be accepted by Koehler Injection for any damage, injury or loss resulting from their use.
Nitrous Master.
Postal Money Order
Works with any brand pump
and fuel injection. Enderle,
Hilborn, Waterman, DSR,
Kinsler, Ron's, Crower

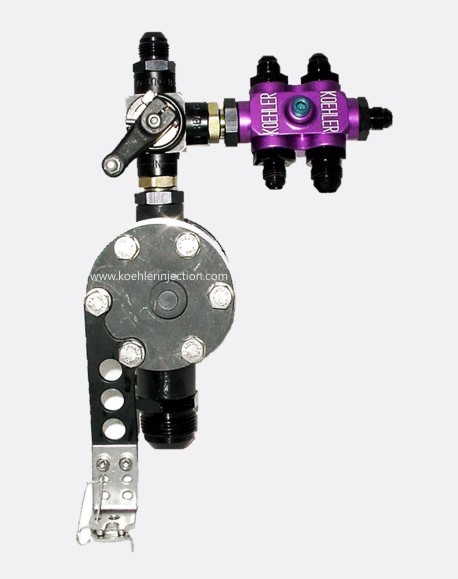

Here a fuel return is attached to a simple barrel valve.
This was used to clean up a messy hose layout that
formerly had Ts running every which way.

Inlet from pump, Idle, main jet, secondary and high
speed are now in one area for easy access.

When used on the pressure side of the system a
pressure sensor can be directly attached to the 1/8 npt
port for useful data acquisition.
Useful on single 4 barrel and stack injections.
